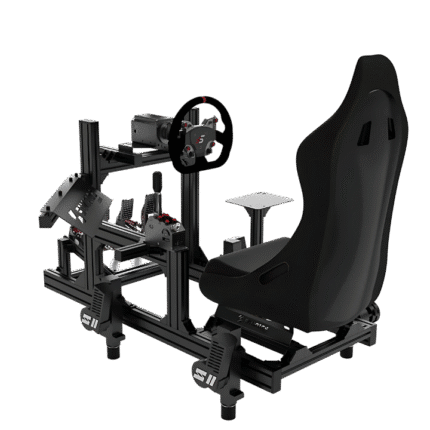

The SR1 is developed for maximum immersion and ease of use. With it’s small footprint it mounts to your existing aluminium extrusion rig. The electronics control unit is small enough to mount under your seat. It connects directly to your computer through USB. The power supply operates on 100-240 V mains.
The system features three degrees of freedom (3-DOF): pitch, roll, and heave. With pitch and roll the system can simulate acceleration, braking, and turning. It can also follow the track geometry; for example by pitching forwards while driving downhill. With heave the system can push the rig upwards when hitting curbs and bumps in the road.
The SR1 is accompanied by SIMRIG Control center. This software control the motion system by interpreting the position and acceleration of the simulated vehicle. It supports all major simulation tiles.
Installation is plug-and-play. Attach the actuators, ECU, power supply, and emergency stop. Connect a few cables. Install the software. Then you are ready!
NOTE: Frame and Accessories Not Included*
MOUNTING
SR1 is compatible with aluminum rigs built using 60×20, 40×40, and 80×40 mm aluminum extrusions. Other sizes are available on request.
Four 20×20 mm aluminum profiles and four plastic brackets are required to attach SR1 to an aluminum rig. These are included when your order a system.
The four 20×20 mm aluminum profiles are mounted in pairs. Two at the front of the rig and two at the back. Each pair holds two SR1 actuators.
The plastic brackets are specifically designed to attach to either 60×20, 40×40, or 80×40 mm aluminum profiles. These profiles differ in height and therefore require a matching bracket. Please specify which rig you intend to use while ordering.
The maximum rig width is 620 mm.
MAXIMUM LOAD
For best performance, longevity, and user experience, the maximum load is set to 175 kg. The maximum load includes the rig, the driver, other peripherals, and additional weight actuated by the SR1 motion system.
When the SIMRIG SR1 is attached to a lightweight rig, such as the SRD-MOTUS ULTIMATE (it only weighs 21 kg) there is about 154 kg left for driver, seat, and peripherals.
COMPATIBILITY
Minimum System Requirements
Operating System -Windows 10/11 (64-bit)
Processor -A modern Intel i5 or equivalent
Runtime -.NET 4.6.1 and Visual C++ Redistributable 2017
WHAT’S IN THE BOX
A complete motion system:
4x SR1 Linear Actuator
1x SR1 ECU
1x 500W Power Supply (100-240V)
1x Emergency Stop
4x Linear Actuator Cable (1m)
1x Power Cable (C13)
1x USB Cable (3m)
1x Low Voltage Power Cable (2m)
1x SIMRIG Control Center (download)Assorted hardware
And mounting brackets for your choice of rig:
4x SR1 Bracket
4x Aluminium Profile 780x20x20 mm
4x Aluminium Angle Brackets
4x Profile Cover
Assorted screws and T-nuts
– American Truck Simulator
– Assetto Corsa
– Assetto Corsa Competizione
– Automobilista
– Automobilista 2BeamNG.drive
– DiRT 4
– DiRT Rally
– DiRT Rally 2.0
– Euro Truck Simulator 2
– Digital Combat Simulator (DCS)
– F1 2017-2022
– Forza Horizon 4
– Forza Horizon 5
– Forza Motorsport 7
– GRID 2019
– iRacing
-WRC 7-10
Contact our team if your simulator game is not listed above.
