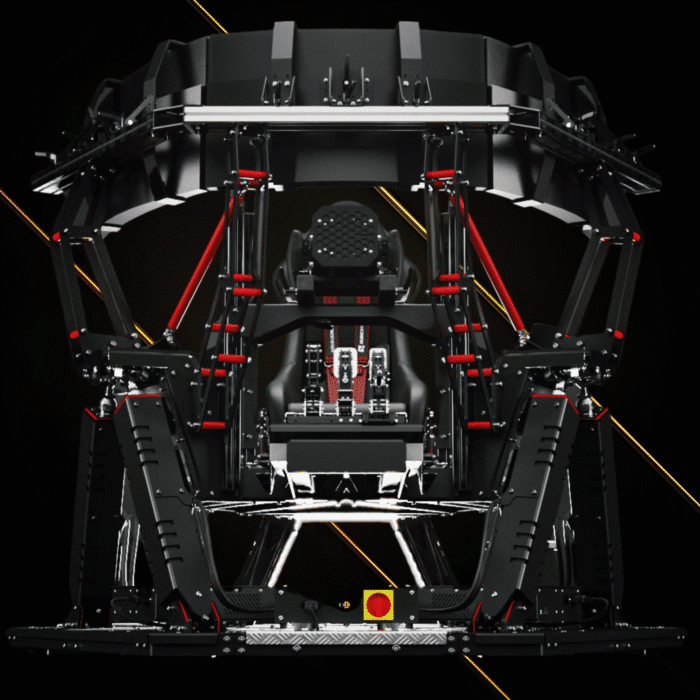

Qubic System Qs-S25 Spider
$54,999.00
The Qubic motion system S25 is an advanced motion cockpit, designed for the most demanding racers who are looking for a professional simulation experience on high top level. This 6DoF motion platform provides drivers with an extreme experience like in a real race or during the ultimate flights.
Lead time 6-8 weeks
In stock
Available — pickup or dispatch within 24 hours.QS-S25 SPIDER
The QS-S25 is an advanced motion cockpit, designed for the most demanding racers who are looking for a professional simulation experience on high top level. The motion system based on patent pending linear actuator’s technology allows a much stronger sensation range such as under steer, loss of grip or overloading during brake clearly blurring the difference between reality and virtual environment.
Due to the combination of dedicated accessories and the QubicManager software, the 6DoF motion platform provides drivers with an extreme experience like in a real race or during the ultimate flights.
TOTAL IMMERSION
FEEL ALL THE DEGREES OF FREEDOM
Device delivers complete freedom of movement across all six axes, allowing you to feel every dynamic shift your vehicle or aircraft makes. This means precise control over pitch, roll , and yaw – critical for replicating cornering forces and rapid directional changes. Additionally, the platform supports surge, sway, and heave, giving you the sensation of acceleration, braking, sliding, and elevation changes.
Together, these six sensations recreates the complex physical forces that act on your body during real-world driving or flying. With the QS-S25, simulation stops being something you see and becomes something you can feel.
INDUSTRIAL GRADE
POWERFUL LINEAR ACTUATOR TECHNOLOGY
QS-S25 is powered by high-speed linear actuators, designed for professional-grade applications. Their precision, dynamics, durability, and overall performance deliver the best simulation experience. They deliver fast, precise, and repeatable motion, capturing both full-body chassis shifts and fine surface detail.
Combined with advanced haptic feedback, it ensures every vibration and motion cue feels lifelike and deeply immersive. It gives you ability to faster acceleration and high speed achievement and excellent feeling of racing line.
- Max. velocity: up to 900 mm/s
- Acceleration: up to 0.88 G
- Vibration feedback range: 0–100 Hz
MODULAR DESIGN
FOR EASIER TRANSPORT AND INSTALLATION

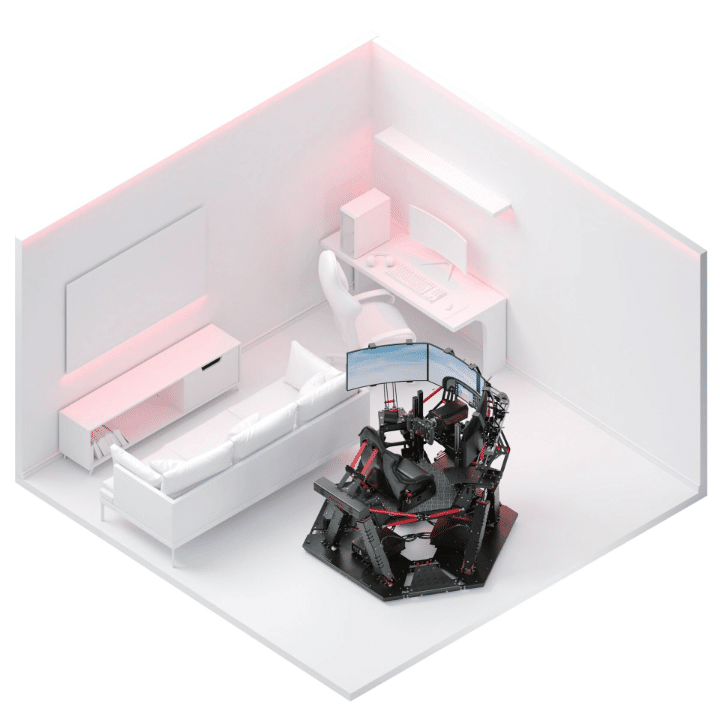

While the QS-S25 is a powerful and heavy machine, its modular design simplifies transport and installation. Components are sized to fit through standard doorways, and the platform can be assembled following an intuitive, Ikea-style process, no need for a professional crew.
Once in place, the system requires no special anchoring for regular use and it works both on 120V and 230V power source without any additional voltage converters.
QS-BT1 COMPATIBILITY
TAKE IMMERSION TO THE NEXT LEVEL
With the QS-BT1 belt tensioner, you can experience an entirely new level of realism. The system subtly adjusts the seatbelt tension to reflect acceleration, braking, and every motion cue, creating a natural, immersive sensation that closely matches what you would feel in a real car or aircraft.
Thanks to its simple installation process and smooth integration, the QS-BT1 works flawlessly with the QS-S25, transforming every session into a more dynamic, engaging, and authentic experience.
QS-BT1Â can be purchased separately.
QUIET AND EFFICIENT
SILENT OPERATION

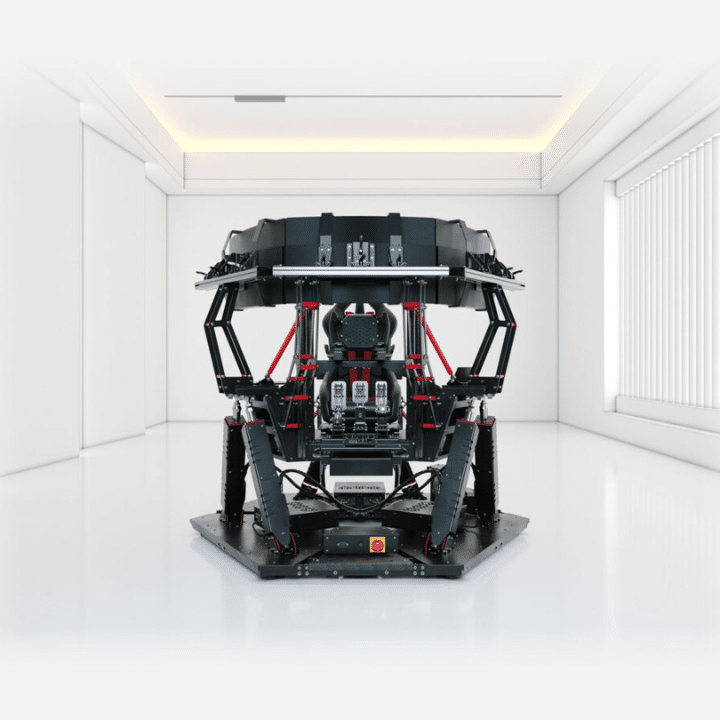

Despite its performance capabilities, the QS-S25 operates at a low noise level, making it suitable for use in home studios, training centers, and VR environments. The actuators and control systems are optimized for quiet operation without sacrificing speed or force output.
The platform is engineered for continuous operation, maintaining reliability and thermal stability during long sessions. This balance of power and efficiency reduces the impact on the surrounding environment.
IN-HOUSE SOFTWARE
EVEN MOST ADVANCED HARDWARE IS NOTHING WITHOUT GOOD SOFTWARE

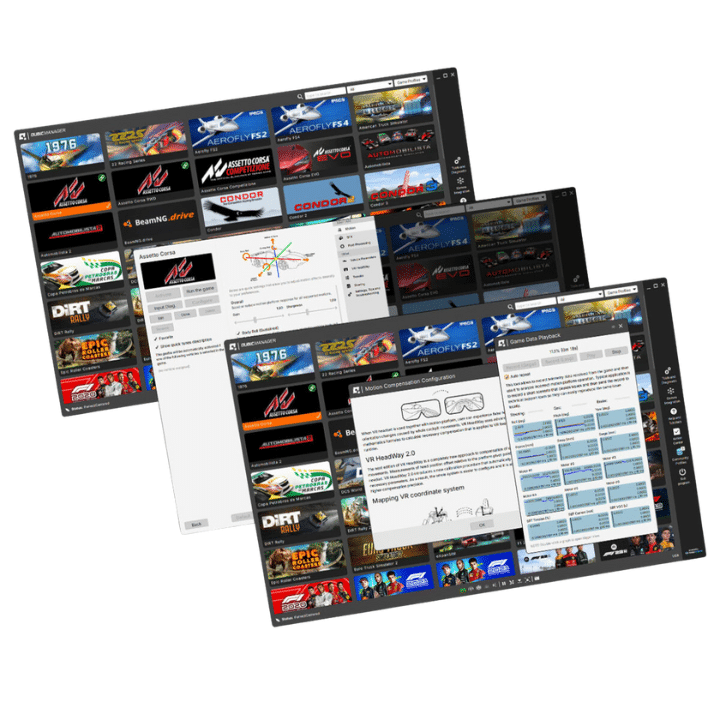

Qubic Manager is a in-house professional and specialized software for motion platforms. It is plug-and-play compatible with all major racing and flight titles on PC and is continually updated to support new titles as they are released. The Qubic Manager is a powerful engine, yet it’s simple to use, allowing you to easily adjust levels of motion, bumps, roll, and pitch with a click of a button.
VR READY
VIRTUAL REALITY WITH MOTION COMPENSATION
Our software is ready to embrace virtual reality. This means that users can enjoy a complete and authentic simulation experience without integration hassles, thanks to perfect compatibility with VR technology. With Qubic System’s VR Ready software, simulations become more immersive than ever.

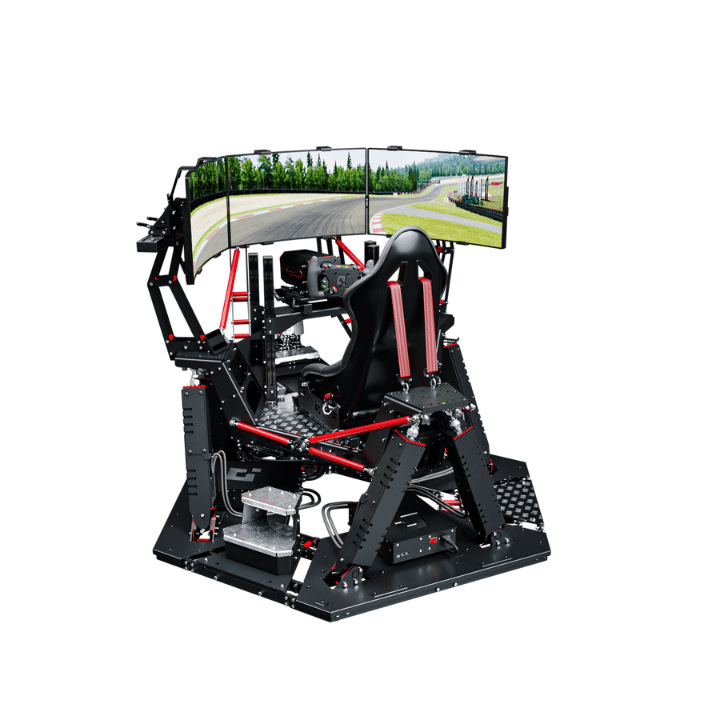

The QS-S25 platform includes dedicated, integrated monitor mounts that support three screens up to 32 inches. These mounts are part of the standard structure and are designed for stable operation during dynamic motion. For extended or custom configurations, external frames may be used.
Yes. The QS-S25 features a single integrated utility shelf on one side of the platform. It is suitable for mounting accessories or control hardware.
The platform consumes approximately 240 W on average during gameplay.Â
Â
The maximum supported payload is 250 kg (551 lb) for the basic S25 platform without additional accessories.
The QS-S25 is designed for most demanding home-users and simulation enthusiasts, industrial grade training simulators, R&D labs and entertainment applications alike. Its advanced motion envelope, high precision, and real-time response makes it a perfect choice for flight simulators, driver training systems and high-end sim racing setups.
Due to the dynamics of the motion platform, the standard requirement is 220V–240V. Operating on 120V adjust the performance of the motion platform.
Yes, the platform fully supports VR technology, offering immersive experiences in racing and flight simulations. Additionally, the VR HeadWay eliminates issues like out-of-sync head movements.
Â
Yes, Qubic Manager software is required and can be downloaded. Â The QS-S25 serial number is needed for activation and profile setup.
Qubic Manager license is free of charge.
- Multifunctional: Flexible and universal unit for many various purposes
- Unleashed performance: Impressive dynamics and high performance
- Software support: Control motion systems using one of ours SDK
- Easy to transport: Modular design enabling transportation and assembly on site from the main components
- VR technology: Full VR technology support
- Safety: Safe mechanical design resistant to electronic failures
| EXCURSIONS | VELOCITY | ACCELERATION | |
|---|---|---|---|
| SURGE | -139.3, 115.4 mm | 1250 mm/s | LIMITED TO 1G* |
| SWAY | -114.8, 114.8 mm | 1000 mm/s | LIMITED TO 1G* |
| HEAVE | -54.3, 53.8 mm | 350 mm/s | LIMITED TO 0.5G* |
| ROLL | -5.0°, 5.0° | 40°/s | LIMITED TO 500°/s²* |
| PITCH | -4.6°, 4.6° | 40°/s | LIMITED TO 500°/s²* |
| YAW | -9.8°, 9.8° | 100°/s | LIMITED TO 1000°/s²* |
- Payload: 250 kg | 551 lb
- Payload (Performance Mode): 150 kg | 330 lb
- Product Weight: 350 kg | 772 lb
- Total Width: 1701 mm | 66.97 in
- Total Length: 1603 mm | 63.11 in
- Min Height: 769 mm | 30.27 in
| 120 V | 230 V | |
|---|---|---|
| AVERAGE POWER [kVA] | 0.9 kVA | 1.3 kVA |
| PEAK POWER [kVA] | 1.5 kVA | 2.4 kVA |
| PEAK CURRENT [A] | 13 A | 11 A |
| AVERAGE POWER - STRESS TEST [kW] | 0.45 kW | 0.46 kW |
| AVERAGE POWER - TYPICAL GAME [kW] | 0.24 kW | 0.2 kW |
VR HeadWay, VBS3/4 Plugin, Self Diagnostic, Self calibration
Platform Manager - QubicManager (license)
- Multifunctional: Flexible and universal unit for many various purposes
- Unleashed performance: Impressive dynamics and high performance
- Software support: Control motion systems using one of ours SDK
- Easy to transport: Modular design enabling transportation and assembly on site from the main components
- VR technology: Full VR technology support
- Safety: Safe mechanical design resistant to electronic failures
| EXCURSIONS | VELOCITY | ACCELERATION | |
|---|---|---|---|
| SURGE | -139.3, 115.4 mm | 1250 mm/s | LIMITED TO 1G* |
| SWAY | -114.8, 114.8 mm | 1000 mm/s | LIMITED TO 1G* |
| HEAVE | -54.3, 53.8 mm | 350 mm/s | LIMITED TO 0.5G* |
| ROLL | -5.0°, 5.0° | 40°/s | LIMITED TO 500°/s²* |
| PITCH | -4.6°, 4.6° | 40°/s | LIMITED TO 500°/s²* |
| YAW | -9.8°, 9.8° | 100°/s | LIMITED TO 1000°/s²* |
- Payload: 250 kg | 551 lb
- Payload (Performance Mode): 150 kg | 330 lb
- Product Weight: 350 kg | 772 lb
- Total Width: 1701 mm | 66.97 in
- Total Length: 1603 mm | 63.11 in
- Min Height: 769 mm | 30.27 in
| 120 V | 230 V | |
|---|---|---|
| AVERAGE POWER [kVA] | 0.9 kVA | 1.3 kVA |
| PEAK POWER [kVA] | 1.5 kVA | 2.4 kVA |
| PEAK CURRENT [A] | 13 A | 11 A |
| AVERAGE POWER - STRESS TEST [kW] | 0.45 kW | 0.46 kW |
| AVERAGE POWER - TYPICAL GAME [kW] | 0.24 kW | 0.2 kW |
VR HeadWay, VBS3/4 Plugin, Self Diagnostic, Self calibration
Platform Manager - QubicManager (license)
