SR2 MOTION SYSTEM
SR2 Overview
The SR2 is our most powerful motion system. Equipped with industrial grade motors, a redesigned ECU, and a beefier power supply, the SR2 is professional grade equipment. All units are designed, built, and tested in Sweden.
Your number one request was increased load capacity. We listened. The SR2 can actuate a total load of 225 kg. This is 50 kg more than the previous version.

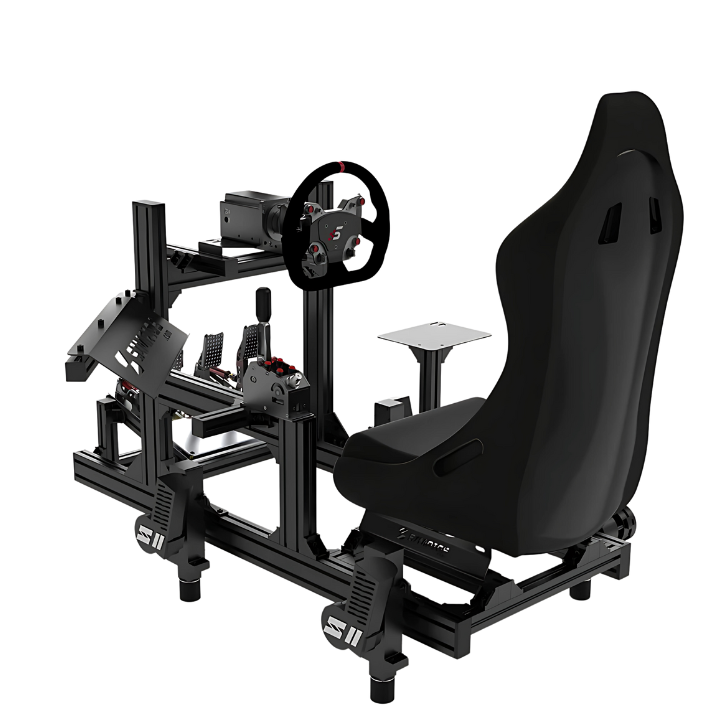

Though powerful and accurate its footprint is small. The actuators mount directly to your rig. The ECU easily fits under your seat. The power supply can be tucked away next to your computer. The SR2 will enhance your rig without increasing its size too much.
The motion system is accompanied by Simrig Control Center. This software control the motion system by interpreting the position and acceleration of the simulated vehicle. It supports all major simulation titles.
Installation is plug-and-play. Attach the actuators, ECU, power supply, and emergency stop. Connect a few cables. Install the software. Then you are ready!
NOTE: Frame and Accessories Not Included*
MOUNTING
The SR2 is compatible with aluminium rigs built using 80×40, 120×40, and 160×40 mm aluminium extrusions. Other sizes are available on request.

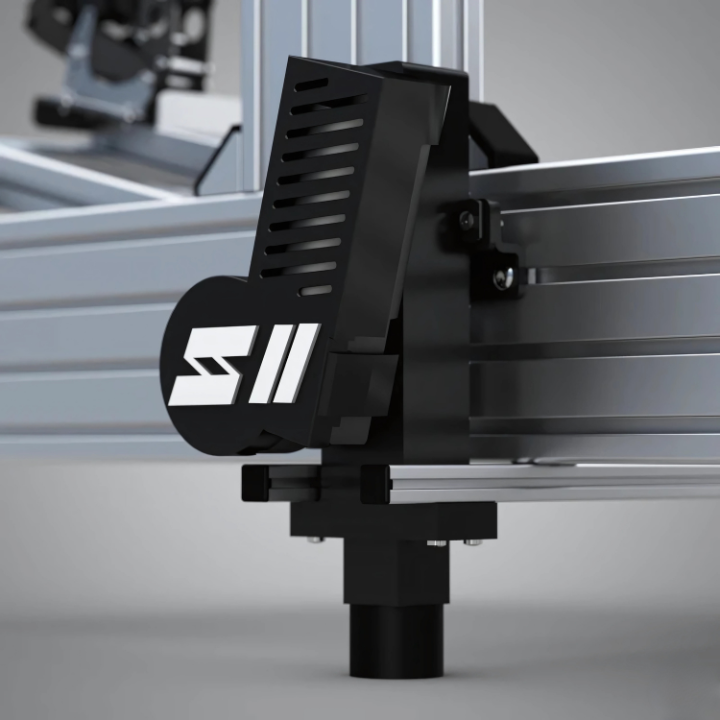

Four 20×20 mm aluminium profiles and four plastic brackets are required to attach the SR2 to an aluminium rig. These are included.

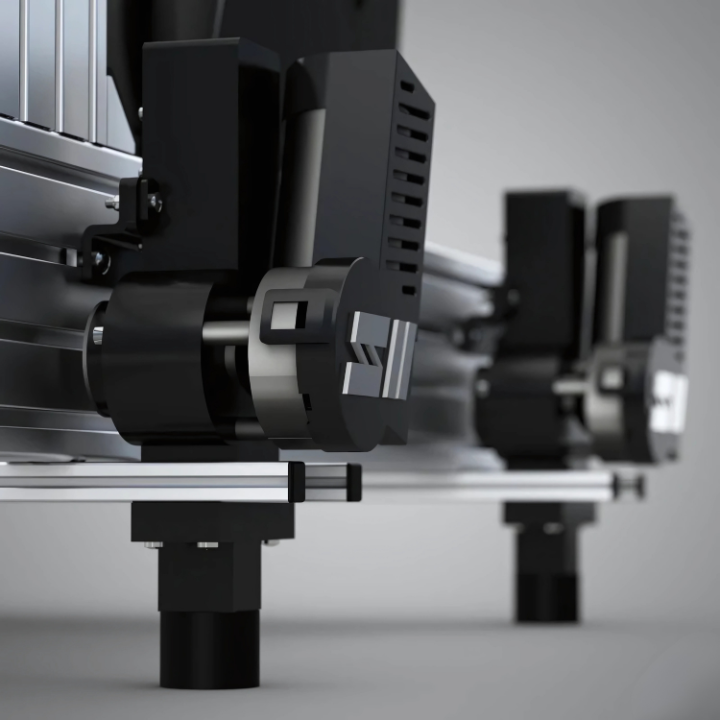

The four 20×20 mm aluminium profiles are mounted in pairs. Two at the front of the rig and two at the back. Each pair holds two SR2 actuators.
The plastic brackets are specifically designed to attach to either 80×40, 120×40, or 160×40 mm aluminium profiles. These profiles differ in height and therefore require a matching bracket. Brackets for these profiles are included in the box.
The maximum rig width is 620 mm.
PERFORMANCE
The SR2 is powered by a 1000 W power supply — more than enough power to react quickly to motion commands. This power supply attaches to your wall socket using a standard power cord.
The system latency is negligible at only 7 milliseconds. We have optimized the software to make sure motion queues are on-time every time.
The maximum load is set to 225 kg for best performance and longevity. The maximum load includes the rig, the driver, peripherals, and additional weight actuated by the SR2 motion system. This is 50 kg more than the SR1.
Even with heavy 160×40 mm rigs (that weigh 65 kg) the SR2 can accommodate a driver, a seat, and peripherals that weigh up to 160 kg in total.

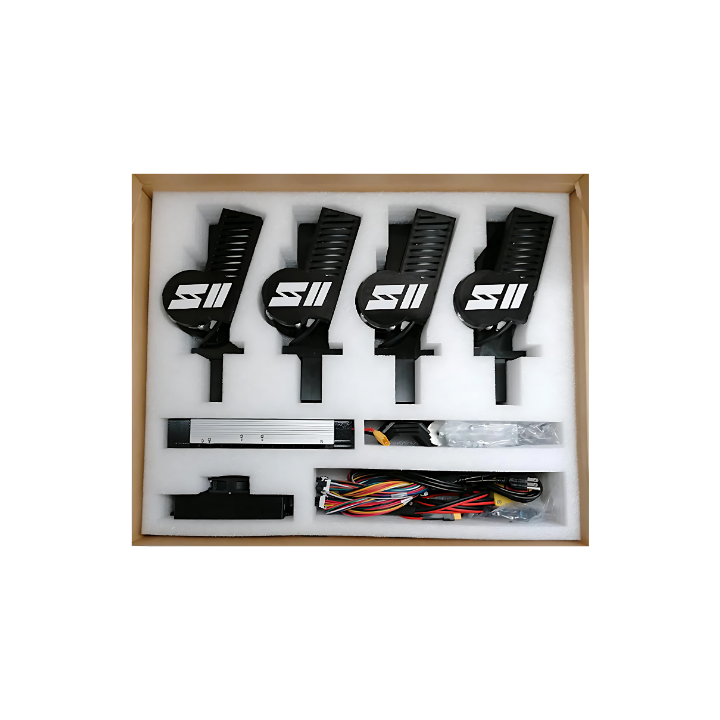

IN THE BOX
A complete motion system:
4x SR2 Actuator
1x SR2 Electronic Control Unit
1x 1000W Power Supply (100-240 V at 50-60 Hz)
1x Emergency Stop
4x Actuator Cable (1m)
1x Power Cable (C13)
1x USB Cable (3m)
1x Low Voltage Power Cable (2m)
1x Simrig Control Center (download)Assorted hardware
And mounting brackets for a 80×40, 120×40, and 160×40 rig:
4x SR2 Mounting Bracket for 80×40
4x SR2 Mounting Bracket for 120-160×40
4x Aluminium Profile 780x20x20 mm
4x Aluminium Angle Brackets
4x Profile CoverAssorted hardware
COMPATIBILITY
Minimum System Requirements
Operating System -Windows 10/11 (64-bit)
Processor -A modern Intel i5 or equivalent
Runtime -.NET 4.6.1 and Visual C++ Redistributable 2017
SUPPORTED SIMULATORS
– American Truck Simulator
– Assetto Corsa
– Assetto Corsa Competizione
– Automobilista
– Automobilista 2BeamNG.drive
– DiRT 4
– DiRT Rally
– DiRT Rally 2.0
– Euro Truck Simulator 2
– Digital Combat Simulator (DCS)
– F1 2017-2022
– Forza Horizon 4
– Forza Horizon 5
– Forza Motorsport 7
– GRID 2019
– iRacing
-WRC 7-10
Contact our team if your simulator game is not listed above.
