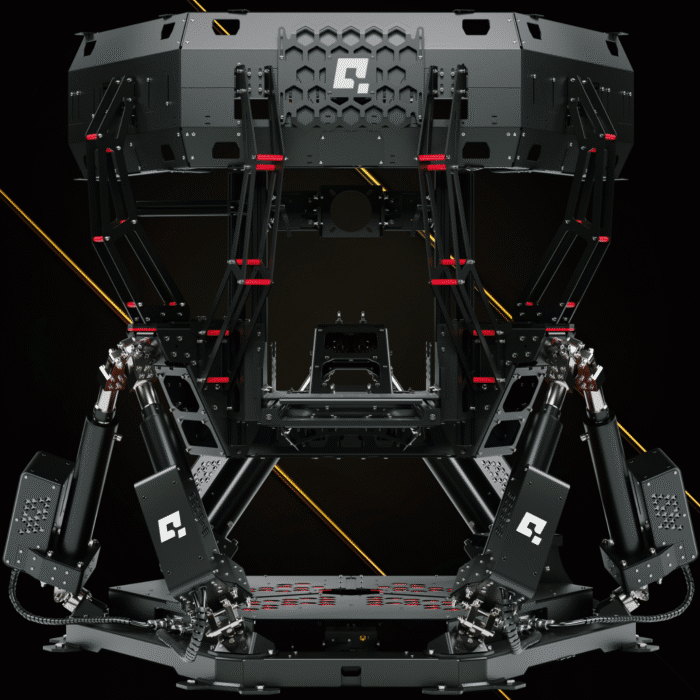

QS-S35

Name: QS-S35
Availability: InStock

Experience next-level immersion with the QS-S35 6DOF motion platform – delivering smarter, more dynamic motion cues that recreate every acceleration, tilt, and drop with unmatched precision for racing, flight, and advanced simulation.

THE ONLY COMMERCIAL 6DOF PLATFORM

WITH CLASS-LEADING MOTION RANGE

The QS-S35 6DOF motion simulator redefines simulation with an unmatched combination of precision, power, and immersion. Its advanced 6DOF system and long-travel actuators turn even the most demanding simulation into a deeply authentic experience – bringing to life sensations once thought impossible.

With over 342 mm (13.46 in) of heave, sharper pitch and roll angles, and rapid response times, the QS-S35 lets you experience dynamic accelerations, weight shifts, and terrain or altitude changes as if you were really there. It’s not just more motion – it’s smarter, more refined movement that transforms both racing and flight simulation.

THE ONLY COMMERCIAL 6DOF PLATFORM

WITH CLASS-LEADING MOTION RANGE

The QS-S35 6DOF motion simulator redefines simulation with an unmatched combination of precision, power, and immersion. Its advanced 6DOF system and long-travel actuators turn even the most demanding simulation into a deeply authentic experience – bringing to life sensations once thought impossible.

With over 342 mm (13.46 in) of heave, sharper pitch and roll angles, and rapid response times, the QS-S35 lets you experience dynamic accelerations, weight shifts, and terrain or altitude changes as if you were really there. It’s not just more motion – it’s smarter, more refined movement that transforms both racing and flight simulation.

EXTREME MOTION ENVELOPE

EXTENDED RANGE, ENHANCED FEELING

Compared to other systems, the QS-S35 6DOF simulator offers over three times the vertical travel and significantly greater motion angles. This expanded envelope is key not just for feeling bumps and compressions, but for creating complex, layered motion cues that maintain immersion even during extreme maneuvers.

Its long range actuators constantly recalibrates using background adjustments (“ghost moves”), so you stay centered in the performance zone – always ready for the next compression, lift, or shift.

CONNECT WITH THE TRACK

HIGH-FIDELITY DRIVING FEEDBACK

With the 6DOF platform QS-S35, the track comes alive under you. You’ll immediately sense understeer, oversteer, grip loss, and balance shifts with a level of clarity that elevates your driving precision.

Inclines pull, descents drop, and camber changes delivered precisely through your body. This is not just a system that moves for effect; it moves to simulate real-world dynamics, providing immediate feedback lap after lap.

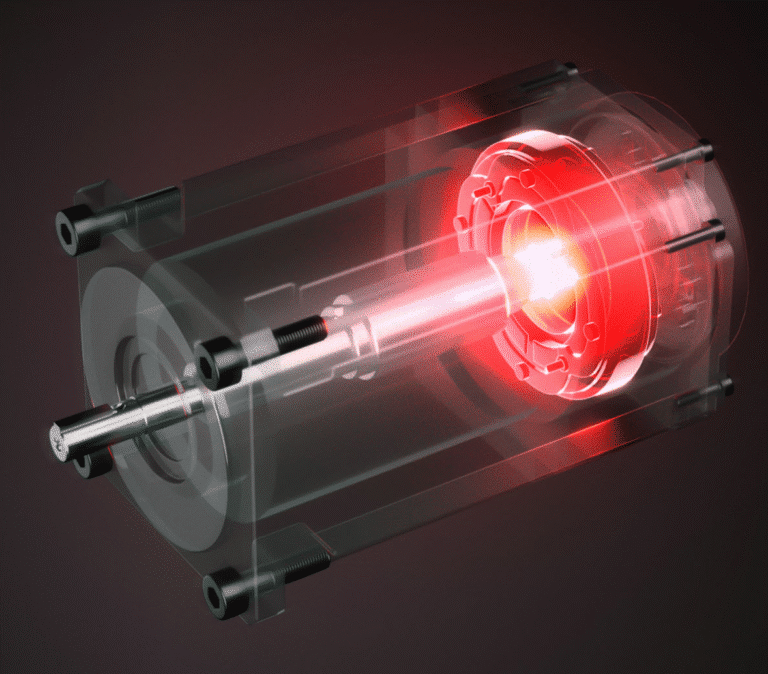

ELECTROMAGNETIC BRAKES

INSTANT MOTION LOCK

The 6DOF motion platform QS-S35 features electromagnetic brakes that immediately stop all platform movement when the motion lock is engaged.

This ensures instant stop, allowing for quick interruptions during operation, and secure handling during setup, adjustments, or maintenance.

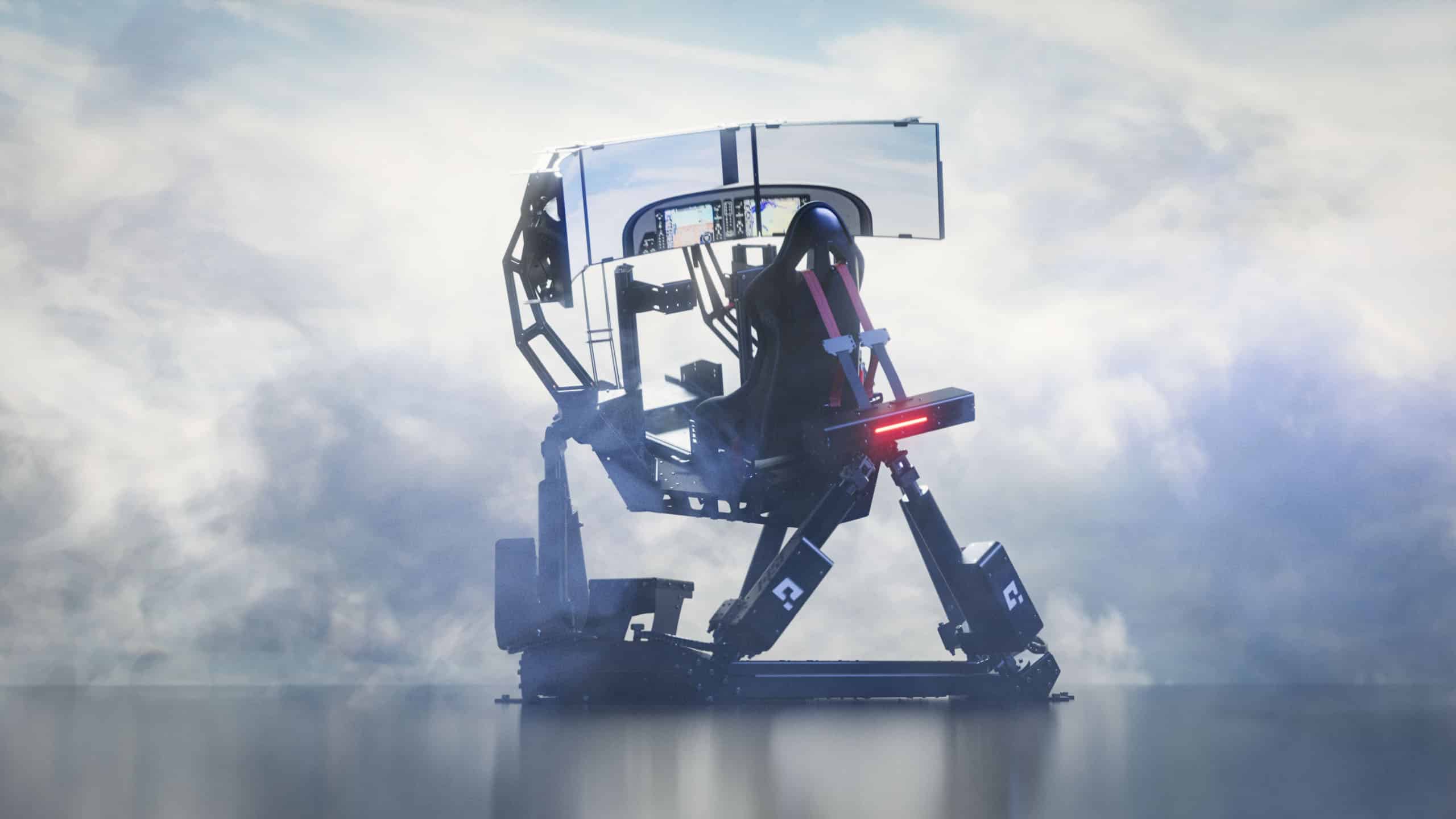

AUTHENTIC FLIGHT DYNAMICS

REALISTIC G-FORCE AND AERODYNAMIC SIMULATION For pilots, flight motion simulator QS-S35 delivers sharper, more sustained G-force sensations, more aggressive pitch and bank angles, and more responsive drift cues. From low-altitude helicopter runs to advanced aerobatic maneuvers and emergency procedure training, this advanced flight simulator platform delivers precise, convincing motion feedback that takes flight simulation realism to the next level.

AUTHENTIC FLIGHT DYNAMICS

REALISTIC G-FORCE AND AERODYNAMIC SIMULATION For pilots, flight motion simulator QS-S35 delivers sharper, more sustained G-force sensations, more aggressive pitch and bank angles, and more responsive drift cues. From low-altitude helicopter runs to advanced aerobatic maneuvers and emergency procedure training, this advanced flight simulator platform delivers precise, convincing motion feedback that takes flight simulation realism to the next level.

LINEAR ACTUATORS

INDUSTRIAL-GRADE DURABILITY

Built for thousands of hours of intense use, the QS-S35’s industrial-grade linear actuators deliver consistent, precise motion, session after session.

They offer exceptional control accuracy and minimal maintenance requirements, ensuring reliable performance even under the demanding loads of continuous racing or flight simulation.

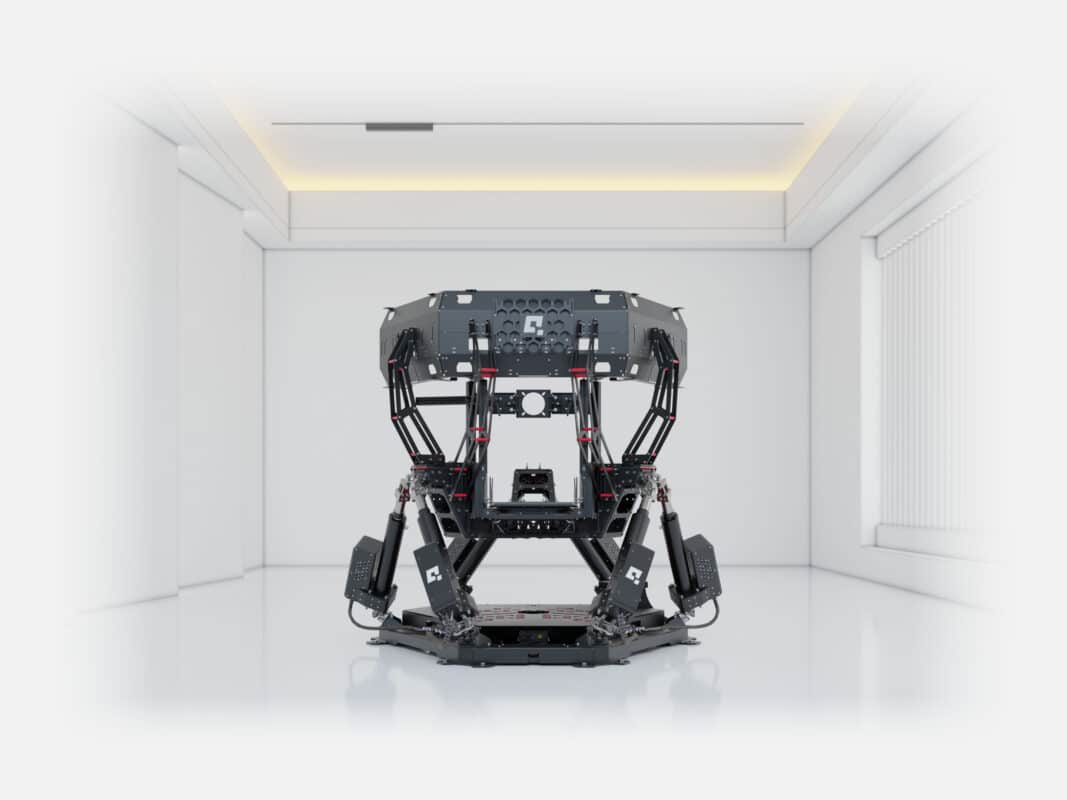

QUIET POWER

MAXIMUM PERFORMANCE, MINIMAL NOISE

Despite its power, the QS-S35 operates almost silently thanks to the implementation of technology acquired during years of experience in multi-million driving simulator projects as Motion Systems (parent company of Qubic System).

This ensures an undisturbed experience, ideal for training facilities, esports centers, and professional home setups, where noise reduction is key.

FULLY EQUIPPED

EVERYTHING YOU NEED, READY TO GO

The QS-S35 ships fully equipped: triple monitor mounts, steering wheel, seat brackets, and the QS-BT1 mount – perfectly prepared base for mounting your favorite accessories.

Because of its extended motion range, the platform includes integrated monitor mounts designed to move with the system, ensuring the visual field always aligns with platform movement. Its modular design makes it easy to switch between racing and flight configurations, often in just minutes, with plug-and-play simplicity.

QS-S35 is also VR READY with integrated motion compensation. This increases the immersion and feeling of connection with the vehicle being driven or the aircraft being piloted.

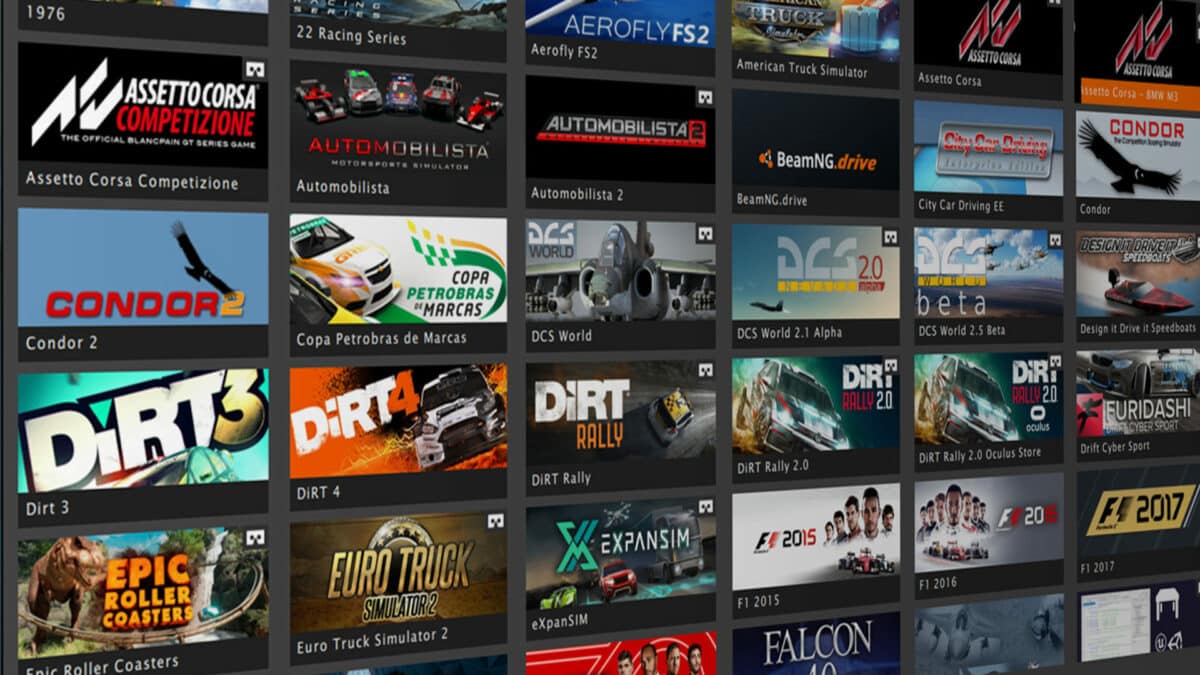

IN-HOUSE SOFTWARE

EVEN MOST ADVANCED HARDWARE IS NOTHING WITHOUT GOOD SOFTWARE

Qubic Manager is a in-house professional and specialized software for motion platforms. It is plug-and-play compatible with all major racing and flight titles on PC and is continually updated to support new titles as they are released. The Qubic Manager is a powerful engine, yet it’s simple to use, allowing you to easily adjust levels of motion, bumps, roll, and pitch with a click of a button.

VR READY

VIRTUAL REALITY WITH MOTION COMPENSATION

Our software is ready to embrace virtual reality. This means that users can enjoy a complete and authentic simulation experience without integration hassles, thanks to perfect compatibility with VR technology. With Qubic System’s VR Ready software, simulations become more immersive than ever.

What size monitors can be mounted?

The QS-S35 platform includes dedicated, integrated monitor mounts that support three screens up to 32 inches. These mounts are part of the standard structure and are designed for stable operation during dynamic motion. For extended or custom configurations, external frames may be used.

Are there side shelves or utility trays included?

Yes. The QS-S35 features a single integrated utility shelf on one side of the platform. It is suitable for mounting accessories or control hardware.

Does the platform need to be anchored to the floor?

Yes. Anchoring is required to ensure safe and stable operation under dynamic load conditions.

How much power does the platform consume?

The platform consumes approximately 500 W on average during gameplay. More details are presented below*.

What is the maximum payload capacity?

The maximum supported payload is 250 kg (551 lb) for the basic S35 platform without additional accessories.

What environments is the QS-S35 platform suitable for?

The QS-S35 is designed for most demanding home-users and simulation enthusiasts, industrial grade training simulators, R&D labs and entertainment applications alike. Its advanced motion envelope, high precision, and real-time response makes it a perfect choice for flight simulators, driver training systems and high-end sim racing setups.

What type of power supply is required to operate the platform?

Due to the dynamics of the motion platform, the standard requirement is 220V–240V. However, if you are a 120V user or are unsure about your electrical installation, please consult a local electrician.

*EU, UK, AU: Recommended circuit breaker – C16; USA: Recommended circuit breaker – B20.

Is the QS-S35 platform compatible with VR technology?

Yes, the platform fully supports VR technology, offering immersive experiences in racing and flight simulations. Additionally, the VR HeadWay eliminates issues like out-of-sync head movements.

Is software included, and how is it installed?

Yes, Qubic Manager software is required. The QS-S35 serial number is needed for activation and profile setup.

Qubic Manager license is free of charge.

What is included in QS-S35?

The set includes all the accessories necessary to create a driving or flight simulator:

6x precise and industrial grade actuators
Dedicated upper and bottom frame
Motion controller
Motion lock
Main power switch
Set of cables
Input panel
Set Of Wheels For Transport
Set Of Rods
Set of eye-rings for racing harness
Step for easier entrance
Base pad for anchoring to the floor
Mounting Bracket: Direct Drive for Steering Wheel or Yoke (two types: wheel deck and front mount)
Mounting Bracket: Pedal set plate
Mounting Bracket: Racing Seat with adjustment
Mounting Bracket: Desk With Attaching Points for Accessories
Mounting Bracket: QS-BT1 Seatbelt Tensioner
Mounting Bracket: Monitors holder
License: Qubic Manager (software)

Can I integrate the QS-S35 with QS-BT1?

Of course, there is such a possibility. Dedicated brackets are included, allowing you to easily mount the QS-BT1.

QS-S35 HIGHLIGHTS

Multifunctional: Flexible and universal unit for many various purposes
Unleashed performance: Impressive dynamics and high performance
Software support: Control motion systems using one of ours SDK
Easy to transport: Modular design enabling transportation and assembly on site from the main components
VR technology: Full VR technology support
Safety: Safe mechanical design resistant to electronic failures

SYSTEM PERFORMANCE

	SINGLE EXCURSIONS	MAXIMUM EXCURSIONS	VELOCITY	ACCELERATION
SURGE	-306.0, 290.4 mm	-370, 370 mm	700 mm/s	7500 mm/s²
SWAY	-273.6, 273.6 mm	-320, 320 mm	700 mm/s	7500 mm/s²
HEAVE	-167.2, 175.1 mm	-170, 177.5 mm	400 mm/s	5000 mm/s²
ROLL	-15.7°, 15.7°	-16.5°, 16.5°	35°/s	450 deg/s²
PITCH	-14.5°, 14.2°	-19.0°, 19.0°	35°/s	350 deg/s²
YAW	-23.1°, 23.1°	-27.0°, 27.0°	60°/s	700 deg/s²

PAYLOAD SPECIFICATION

Payload: 250 kg | 551 lb
Product Weight: 475 kg | 1047 lb

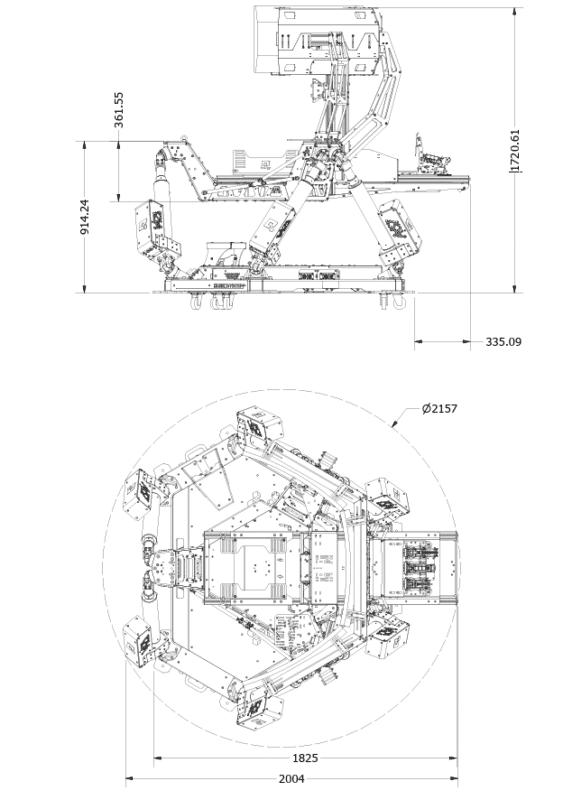

MAIN DIMENSIONS

Diameter: 2157 mm | 84.92 in
Min Height: 1720.61 mm | 67.74 in

POWER REQUIREMENTS

Required supply voltage: 220 V - 240 V, 50-60Hz

Average Power [kVA]: 3 kVA
Max Power[kVA]: 5 kVA
Peak Current [A]: 35 A*
Average Power - Stress Test [kW]: 1.7 kW
Average Power - Typical Game [kW]: 0.5 kW

*EU, UK, AU: Recommended circuit breaker - C16; USA: Recommended circuit breaker - B20.

If you are unsure about your electrical installation, consult a local electrician.

VR HeadWay, Self Diagnostic, Self calibration

Platform Manager - QubicManager (license)

All values are in millimeters.
